What do you need to know to buy a coil inductor?

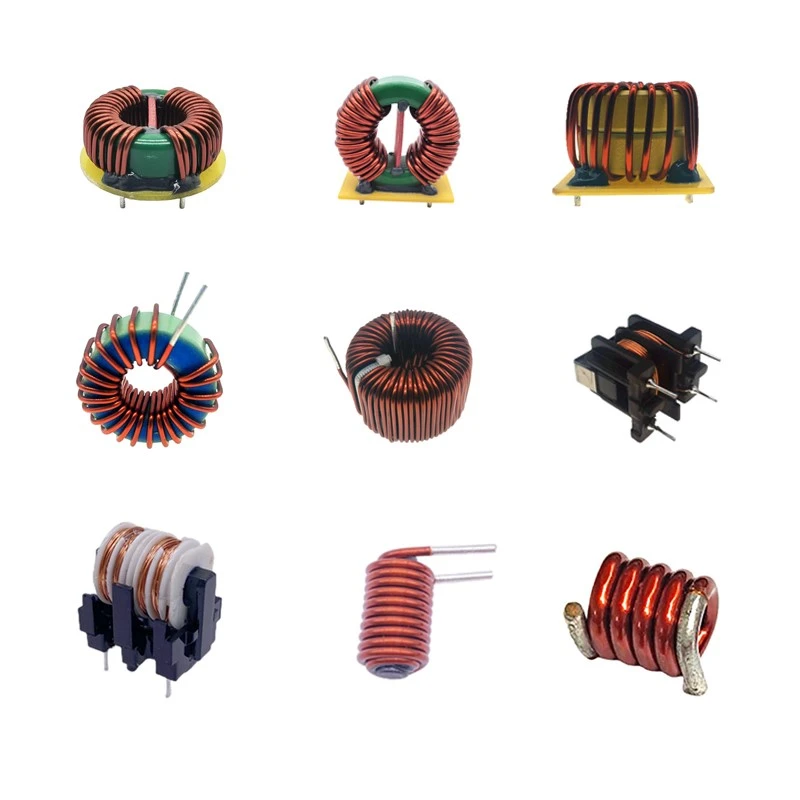

Coil inductors are passive electronic components that store and release energy in the form of magnetic fields. They are made up of insulated wire wound around a core, and are primarily used in circuits where the inductance value needs to be modified or where noise and interference need to be minimized.

Characteristics of Coil Inductors:

1. Inductance: The inductance value of a coil inductor is measured in Henries (H). The amount of inductance depends on various factors, such as the number of turns of wire, the gauge of wire, the shape and size of the coil, and the material of the core.

2. Frequency: The inductance value of a coil inductor changes with the frequency of the AC signal passing through it. It is important to choose a coil that is designed for the frequency range of the circuit.

3. Q factor: The Q factor, also known as the quality factor, is a measure of the efficiency of an inductor. It is determined by the ratio of the inductive reactance to the resistance of the coil.

4. Temperature: The temperature coefficient of an inductor determines how much the inductance value changes with changes in temperature.

Applications of Coil Inductors:

1. Filters: Coil inductors are commonly used in filters to remove unwanted frequencies from a signal.

2. Power supplies: In power supplies, coil inductors are used to smooth out ripple currents and minimize electromagnetic interference.

3. Tuned circuits: Coil inductors are used in tuned circuits, such as radio tuners and oscillators, to select and amplify a particular frequency.

4. Signal coupling: In audio equipment, coil inductors are used to couple signals between/among different stages in a circuit.

In conclusion, coil inductors are important passive electronic components with many applications in various fields of electronics. The selection of a suitable coil inductor depends on the specific requirements of the circuit, such as the desired inductance value, frequency range, and efficiency.For more information, please contact us at sales@xfullstar.com
