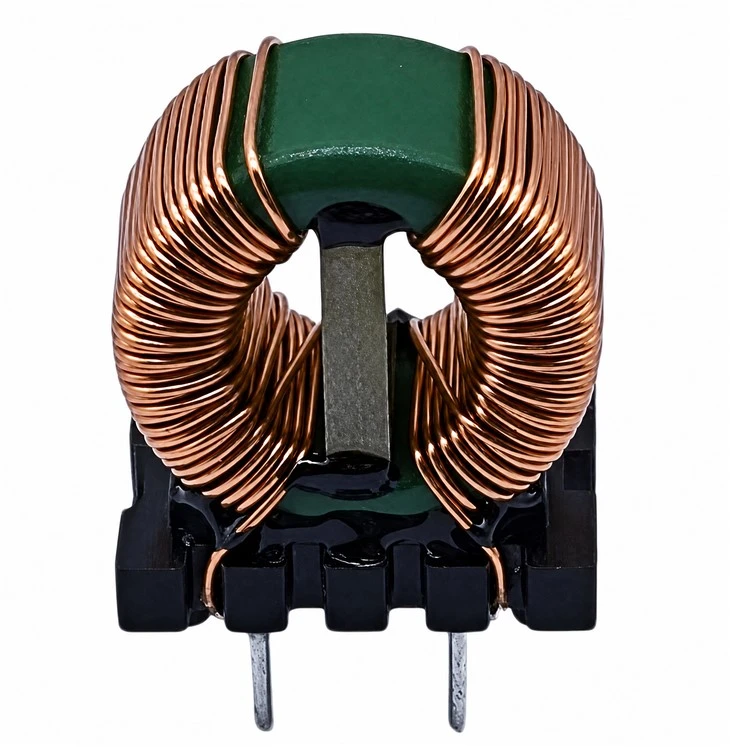

Through-hole Common Mode Choke coils

Through-hole Common Mode Choke introduction

Through-hole Common Mode Chokecoilsis an inductor used to block higher-frequency while passing direct current (DC) and lower-frequencies of alternating current (AC) in an electrical circuit. A choke usually consists of a coil of insulated wire often wound on a magnetic core, although some consist of a doughnut-shaped "bead" of ferrite material strung on a wire. The choke's impedance increases with frequency. Its low electrical resistance passes both AC and DC with little power loss, but its reactance limits the amount of AC passed.The above is about choke coils introduction.

2.product Parameter

3.Product feature

1High frequency

2Low magnetic leakage

3Useful various power conversion and line filter application

4Low radiation noise based on toroidal construction

5 Various material available to meet different frequency requirements

4.Product application

Prevention of noise on signal lines and power lines for computer related or electronic products
As a preventive measure against noise terminal voltage or power supply noise in AC/DC DC/DC line noise suppression, TV/VCR unit sand communication system,Video cameras, Audio equipments.TV tunners.Switching power supplies.Another circuits of consideration aganist radiation for choke coils.

5.our company

SHAANXI FULLSTAR ELECTRONICS CO.,LTD is specialized in electronics and magnetic components .
The main products are: Electrical transformer, inductor, current transformer, magnetic core,   etc.,

Our factory has 30 years' experience in electronics field and the annual volume is above 200,000,000 pieces. We are ISO9001:2015 certified company.

6.Packaging and Shipping

7.FAQ

Q: What's the lead time for mass order?

A: In general, it is about 20 to 30 days according to your order qty.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: How about your products quality inspection?

A:We have professional QA and QC teams,100% quality inspection is performed before goods out of factory.
