Flux Coupling vs Transformer Coupling: Differences, Applications, and Design Considerations

Quick Answer: Flux coupling and traditional transformer coupling both transfer energy through magnetic fields. The key difference is how the magnetic flux path is controlled. Traditional transformer coupling uses a shared magnetic core to achieve strong coupling, low leakage inductance, and efficient AC power transfer. Flux coupling is a broader magnetic design approach that allows engineers to control flux paths through planar structures, air gaps, separated cores, or specialized magnetic arrangements. The right choice depends on operating frequency, power level, isolation, physical size, leakage inductance, and whether controlled magnetic coupling is required.

Key Takeaways

Traditional transformer coupling uses a shared closed core, typically achieving a coupling coefficient (k) of 0.95–0.99.

Flux coupling is a broader concept. It can use planar windings, air gaps, separated cores, or superconducting elements to control magnetic coupling.

A higher coupling coefficient is not always better. Wireless power transfer, RF matching, and fault-current limiting may intentionally use lower or controlled coupling.

Traditional transformers do not transfer steady-state DC through transformer action. DC bias can still saturate the core and must be managed.

Planar transformers, wireless power transfer, RF circuits, and specialized fault-current-limiting transformers are common flux-coupling applications.

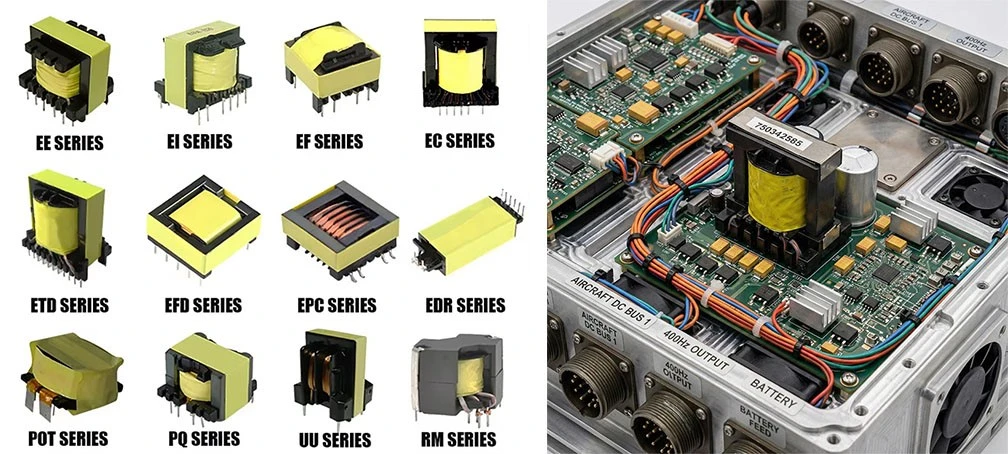

What Is Traditional Transformer Coupling?

Traditional transformer coupling is the most widely used form of magnetic coupling in electrical and power systems. It is commonly found in:

Power transformers

Distribution transformers

Audio transformers

Industrial magnetic components

Power conversion systems

A conventional transformer consists of two windings-primary and secondary-placed on a shared magnetic core. The core is typically made from silicon steel or ferrite, which provides a low-reluctance path for magnetic flux.

When alternating current flows through the primary winding, it creates a changing magnetic field inside the core. This changing magnetic flux links with the secondary winding and induces a voltage according to Faraday's law of electromagnetic induction.

A well-designed transformer aims to:

Maximize useful magnetic flux linkage

Minimize leakage flux

Reduce leakage inductance

Improve energy-transfer efficiency

This results in a high coupling coefficient between the primary and secondary windings.

Understanding the Coupling Coefficient (k)

The coupling coefficient describes how strongly two magnetic components are linked. It is defined as:

k=ML1L2k=L1​L2​​M​

Where:

M = mutual inductance between two windings

L₁ = primary self-inductance

L₂ = secondary self-inductance

The theoretical range is:

k = 1 → perfect magnetic coupling

k = 0 → no magnetic coupling

A higher coupling coefficient generally means more magnetic flux generated by one winding links with the other winding. However, coupling coefficient should not be considered independently. The ideal value depends on the complete electrical system, including frequency, topology, resonance, and power requirements.



Does a Traditional Transformer Transfer DC?

No. A conventional transformer does not transfer steady-state DC from the primary side to the secondary side. Transformers operate through changing magnetic flux. A constant DC voltage does not create the changing magnetic field required for transformer action.

However, DC bias can affect transformer performance. Excessive DC current in the winding may:

Drive the magnetic core toward saturation

Increase magnetizing current

Increase losses

Cause overheating

Reduce efficiency

This is an important design consideration in applications where DC components or asymmetric waveforms are present.

What Is Flux Coupling?

Flux coupling is a broader concept describing magnetic energy transfer where the magnetic flux path is intentionally controlled. Unlike traditional transformer coupling, flux-coupled designs do not always rely on two windings sharing a single closed magnetic core.

Engineers can modify the magnetic relationship through:

Winding geometry

Coil spacing

Air gaps

Core arrangement

Planar structures

Specialized magnetic materials

This additional design freedom makes flux coupling useful in applications where conventional transformer structures may not be practical. Common examples include:

Planar transformers

Wireless power transfer systems

RF magnetic components

Specialized fault-current-limiting transformers

Planar Flux-Coupled Transformers

Planar transformers use flat windings manufactured on printed circuit boards (PCB), semiconductor substrates, or integrated magnetic structures. Instead of traditional wire winding methods, planar designs control magnetic coupling through precise geometric layouts.

Important design parameters include:

Primary and secondary overlap area

Winding spacing

Number of turns

Magnetic material selection

Leakage inductance

Parasitic capacitance

Thermal performance

The advantages of planar transformers include:

Compact Size
Planar magnetic components can achieve very low profiles, making them suitable for consumer electronics, automotive electronics, telecom power systems, and high-density power converters.

High-Frequency Operation
At higher frequencies, conventional transformer designs may experience increased losses caused by core limitations, skin effect, proximity effect, and parasitic capacitance. Planar structures allow engineers to optimize these effects more effectively.

Manufacturing Consistency
Because planar windings are produced using PCB or semiconductor manufacturing methods, they provide excellent repeatability in mass production.

Flux Coupling in Wireless Power Transfer

Wireless power transfer (WPT) is one of the most recognized applications of flux coupling. Unlike a conventional transformer, wireless charging systems do not have a shared magnetic core between transmitter and receiver. Instead, energy is transferred through magnetic fields between separated coils.

The coupling strength depends on:

Coil distance

Coil alignment

Coil size

Operating frequency

Magnetic shielding

System geometry

Because the coupling coefficient is usually lower than in a conventional transformer, wireless power systems commonly use resonant compensation networks. These networks help improve efficiency by compensating for reactive losses caused by leakage inductance.

Typical applications include:

Smartphone wireless charging

Electric vehicle wireless charging

Industrial wireless power systems

EV wireless charging systems commonly operate around k = 0.2–0.3, although actual values vary with coil geometry and alignment.

Flux Transfer-Type Transformers

Another specialized application of flux coupling is flux-transfer-type transformers. These systems use separate magnetic cores connected through superconducting elements.

Research prototypes have investigated superconducting materials such as YBCO loops to control magnetic coupling between independent cores.

During normal operation:

Magnetic flux is transferred between cores

The system behaves similarly to a transformer

During fault conditions:

The superconducting element changes state

Magnetic coupling decreases

Fault current can be limited

This technology is highly specialized and is not intended to replace conventional transformers in general applications.

Flux Coupling vs Traditional Transformer Coupling: Comparison Table

Feature	Traditional Transformer Coupling	Flux Coupling / Specialized Magnetic Coupling
Magnetic path	Usually a shared closed magnetic core	Shared cores, separated cores, air gaps, or planar structures
Coupling coefficient (k)	Generally high, often 0.95–0.99	Can range from low to high depending on geometry
Leakage inductance	Typically minimized	Can be minimized or intentionally increased
Physical separation	Usually limited; windings share a core	Can support physically separated windings or coils
Electrical isolation	Inherent between primary and secondary	Also possible, depending on architecture
DC behavior	No steady-state DC transfer; DC bias can saturate core	No steady-state DC transfer; topology can be optimized for DC bias or isolation
High-frequency integration	Core material and parasitics can become limiting	Planar structures can be advantageous
Wireless power transfer	Not applicable to a conventional shared-core transformer	Common application
RF applications	Conventional magnetic coupling can be used	Planar and integrated magnetic coupling are common
Fault-current limiting	Standard transformers do not inherently provide this	Specialized superconducting designs can incorporate it
Typical applications	Power conversion, distribution, audio, industrial transformers	Wireless charging, planar magnetics, RF matching, specialized protection systems

Coupling Coefficient and Leakage Inductance

A useful way to understand the relationship between coupling and leakage is through leakage inductance. When leakage inductance becomes large relative to the useful magnetizing inductance, the effective coupling between the windings decreases.

In conventional power transformers, designers generally try to minimize leakage inductance. In some high-frequency, resonant, or current-limiting applications, however, controlled leakage can actually be useful.

This is one of the most important differences between a standard transformer and application-specific magnetic coupling designs.

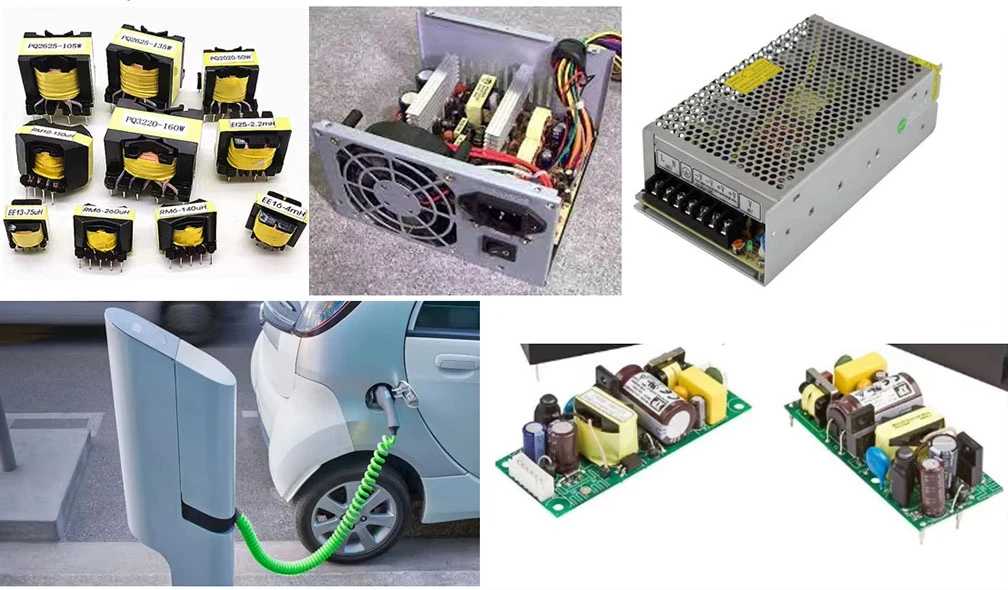

Where Traditional Transformer Coupling Works Best

Traditional transformer coupling remains a strong choice when the system requires efficient magnetic energy transfer at line or relatively low frequencies.

Power Transformers
Power transformers use magnetic cores and closely coupled windings to transfer AC power efficiently while maintaining galvanic isolation between circuits.

Distribution Transformers
Distribution transformers are designed around well-controlled magnetic flux paths, insulation systems, thermal management, and high reliability over long operating periods.

Audio Transformers
Audio transformers use magnetic coupling for impedance matching, signal isolation, and other circuit functions where controlled frequency response and low distortion are important.

The main advantage of conventional transformer coupling is its mature design methodology, high efficiency, and predictable magnetic behavior.

Where Flux Coupling Is More Suitable

Flux-coupled and other specialized magnetic coupling approaches become attractive when conventional transformer construction creates limitations.

Wireless Power Transfer
Wireless charging requires the transmitter and receiver to operate without a shared magnetic core. Because the coils are separated, coupling is lower than in a conventional tightly coupled transformer. Resonant compensation is therefore commonly used to improve system performance.

Planar Magnetics
Planar transformers can offer major advantages in size, high-frequency operation, manufacturing consistency, PCB integration, controlled parasitics, and compact packaging. This makes them attractive for modern power electronics, telecom, computing, automotive electronics, and other space-constrained systems.

RF Power Matching
At RF frequencies, magnetic component geometry becomes increasingly important because parasitic capacitance, substrate effects, and material losses can dominate performance. Integrated and planar transformer structures can provide compact impedance transformation and electrical isolation while fitting within stringent PCB or chip-level size constraints.

Fault-Current Limiting
Specialized superconducting flux-transfer transformers have also been investigated for fault-current-limiting applications. In published experimental work, superconducting YBCO elements were used to couple two independent iron cores. When a fault caused the superconducting element to transition out of the superconducting state, coupling between the cores was reduced and the secondary fault current was limited.

How to Choose Between Flux Coupling and Traditional Transformer Coupling

The choice should be based on system requirements rather than on coupling coefficient alone.

Traditional Transformer Coupling May Be Appropriate When:

High efficiency is the primary goal

The operating frequency is relatively low

A shared magnetic core is practical

High power transfer is required

Leakage inductance should be minimized

A conventional transformer topology meets the isolation requirement

A Flux-Coupled or Specialized Design May Be Appropriate When:

The primary and secondary need physical separation

Wireless energy transfer is required

A compact planar structure is preferred

High-frequency operation places constraints on conventional cores

Controlled leakage inductance is useful

The design requires specialized current-limiting or magnetic-control behavior

The most appropriate topology depends on frequency, power level, isolation voltage, allowable parasitic capacitance, thermal constraints, mechanical space, and required coupling.

Frequently Asked Questions

Is flux coupling the same as transformer coupling?

Not exactly. Transformer coupling is a specific and widely used form of magnetic coupling between primary and secondary windings. "Flux coupling" can describe a broader range of systems in which magnetic flux is intentionally used and controlled to transfer energy or influence the interaction between separate magnetic circuits.

Is a higher coupling coefficient always better?

No. A higher k generally reduces leakage and is desirable in many conventional transformers. However, some resonant, RF, wireless-power, and protection applications may deliberately use lower or controlled coupling. The target value depends on the circuit topology and desired electrical characteristics.

What is a typical coupling coefficient for wireless power transfer?

There is no universal value. EV wireless charging systems commonly operate around k = 0.2–0.3. Other wireless power architectures can have substantially different coupling coefficients depending on coil geometry, spacing, and alignment.

Does a transformer transfer DC?

A transformer does not transfer steady-state DC through transformer action. It transfers energy through changing magnetic flux. A DC component applied to the primary can affect the magnetic core and may cause saturation, but it is not directly transferred to the secondary as steady-state DC.

Can a planar transformer replace a conventional transformer?

Sometimes, but not universally. Planar transformers can offer major advantages in size, high-frequency operation, manufacturing consistency, and PCB integration. Conventional wound transformers may still be preferable for some high-power, low-frequency, or mechanically constrained applications.

What is the difference between magnetic coupling and wireless power transfer?

Magnetic coupling is the underlying electromagnetic mechanism. Wireless power transfer is one application of that mechanism. Wireless power systems typically use physically separated coils, whereas a conventional transformer normally uses windings positioned closely enough to share a magnetic core or tightly controlled magnetic path.

Conclusion

The main difference between traditional transformer coupling and flux-coupled architectures is not simply the value of the coupling coefficient. The more important question is how the magnetic flux path, winding geometry, leakage inductance, and physical relationship between the two circuits are designed for the application.

Traditional transformers are optimized for efficient and reliable AC power transfer using closely coupled magnetic circuits. Flux-coupled and specialized magnetic structures provide additional design freedom for wireless power transfer, planar magnetics, RF circuits, and advanced protection technologies.

For engineers selecting a magnetic component, the right design should be evaluated using the complete set of requirements-including frequency, power, insulation, coupling coefficient, leakage inductance, thermal performance, parasitics, and physical dimensions-rather than choosing a topology based on one parameter alone.
