China factory for High Quality Split Core Current Sensor Transformer 0.333V

Basic Info

·         Model NO.: SCT016

·         Type: Split Core Current Sensor

·         Operation Condition: Indoor

·         Winding Form: Multilayer Honeycomb Type

·         Installation: Active Type

·         Voltage Transformation Principle: Capacitive Type

·         Window Size: 16mm

·         Rated Output Current: 0.333VAC ,Mv or Ma

·         Package: Outer Carton with Smaller Inner Box

·         Origin: China

·         Application: Electronic, Instrument, Position Sensor, Audio, Lighting

·         Phase: Single

·         Usage: Measurement

·         Insulating Medium: Insulating Paper

·         Magnetic Circuit Structure: Single Stage Type

·         Model: Split Core Current Sensor SCT016

·         Rated Input Current: 0-100A

·         Trademark: SHAANXI FULLSTAR

·         Specification: CE, UL, ROHS, ISO9001: 2008

·         HS Code: 85045000

Product Description

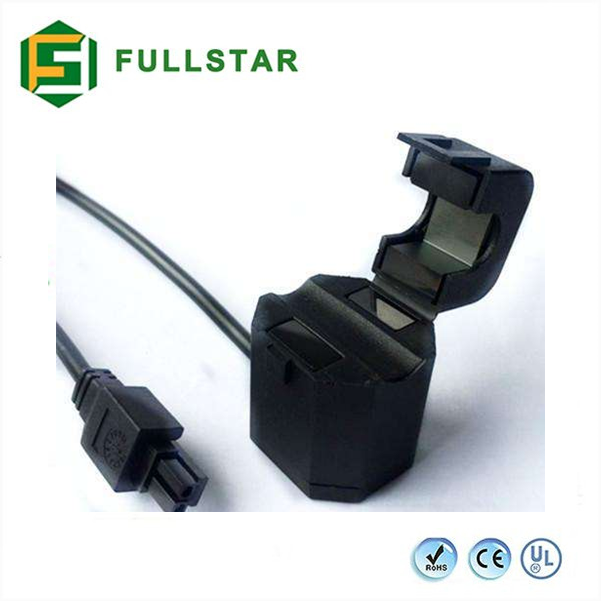

Split Core AC Current Transformer SCT016

φ16mm Opening With 50 To 120 Amp Rating

Description:

SHAANXI FULLSTAR SCT016 Series split-core current transformer AC current from 50 to 120 Amps passing through the center conductor. Split core CTs are designed for fast and easy installation.The split core design permits non-contact current measurements through magnetic field induction without requiring that the primary wire be taken offline and disconnected for CT installation.This method permits a safer,easy and portable current measurement.

Features:
Maximum continuous primary current 120 A AC
Output: mA or 0.333 Volt at rated current
Current Ratio: 500:1,1000:1,2000:1,2500:1,3000: 1
Maximum Primary Voltage: 5000Vac(Insulated Conductor)
Phase angle: Less than 1.5 degrees at rated current
Frequency Range: 50 Hz to 400 Hz
Accuracy: ± 1% from 5% to 120% of rated current
Operating Temperature: -15 Cto 60 C.
Insulation Voltage: 600Vac
Leads: 4Foot(105cm), UL 1015, Twisted Pair, 24AWG
CE ,ETL recognized, and RoHS compliant
Output and leads can be customized

Applications:
Sub-Metering Accurate Measurement
Data Loggers to analyze Building & Machinery Performance
Digital Fault Recorders
Smart Grid Application Features
Load Center
Three Phase Balance Control
In-Factory Display In-Home Display
Inverters for Solar & Wind Turbine Systems
Power Measurement Device For PLC
