IFT Coil -Variable/ Adjustable Inductor Application For Radio Receivers And AM/FM Radios
Sep 15, 2016
Leave a message
TYPE : Adjustable coil / IFT coil
FULLSTAR P/N IFT0712--R40
Features
Ideal for use as an FM IFT and in detector circuits.
Unique design features a cup core adjustor threaded directly to the shield can , allowing use of larger cores. This results in the superior large signal characteristics normally associated with ordinary 10mm types.
Specifications
Q(1-3) : 0.4uH+/-3%@25.2MHz
Hi-pot: 100Vdc, 1 min primary to secondary
Insulation resistance: 100Vdc, 100MΩ Min
Operating temperature: -25℃ to +85℃
Storage temperature: -40℃ to +70℃

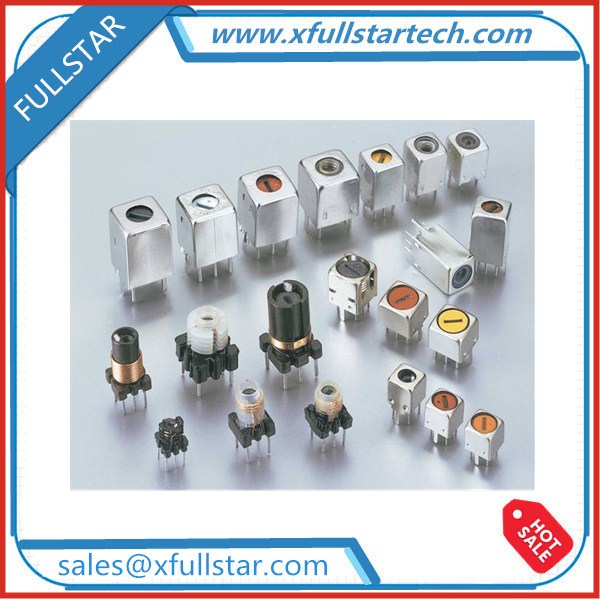

Sample show
Applications:
RF radio, wireless transceiver and security field
FM radio, TV receiver and transceiver
Car, wireless telecommunication
Radio Communications
Remote Control Applications
RF electronic application
car reversing radar
cordless phone and more
Electronic equipment
Video tape recorders
Remark
RoHS Compliant
Flammability: UL94V-0
ASTM oxygen index: ＞28%
Temp 20℃， 48%RH
Advantage :
High effective permeability,
High inductance,
Small size
Straightening play stress is low, low loss
Less winding turns number, small distributed capacitance
High saturation magnetic induction and EMI noise effect
High Curie temp point, stable temperature performance
Good frequency characteristics
