Common Mode Choke Made By Nanocrystalline Core

Type : Common mode choke

P/N : FTRB181010-102Y

Specs :

Inductance:  1.0mH+/-50%

DCR: 3.3mΩ MAX

Testing condition: 10KHz, 0.3V

Rated voltage: 250Vac Max

Hi-Pot: 1500Vac, 5mA, 2S

Operating temperature: -40℃ to +125℃

Storage temperature: -20℃ to 60℃

Remark

RoHS Compliant

Flammability: UL94V-0

ASTM oxygen index: ＞28%

Temp 20℃， 48%RH

Application domain:

Switching Mode Power Supply

UPS uninterrupted power supply

Pulse welding equipment

Power converter

Wind power generator

Various transmission devices

Other single phase or three-phase power lines and common mode filters in various power supply

Advantage :

High effective permeability,

High inductance,

Small size

Straightening play stress is low, low loss

Less winding turns number, small distributed capacitance

High saturation magnetic induction and EMI noise effect

High Curie temp point, stable temperature performance

Good frequency characteristics

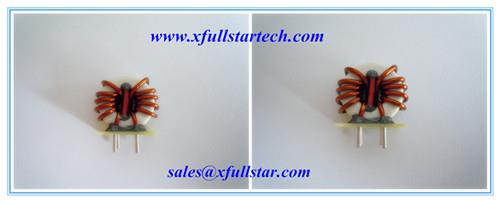

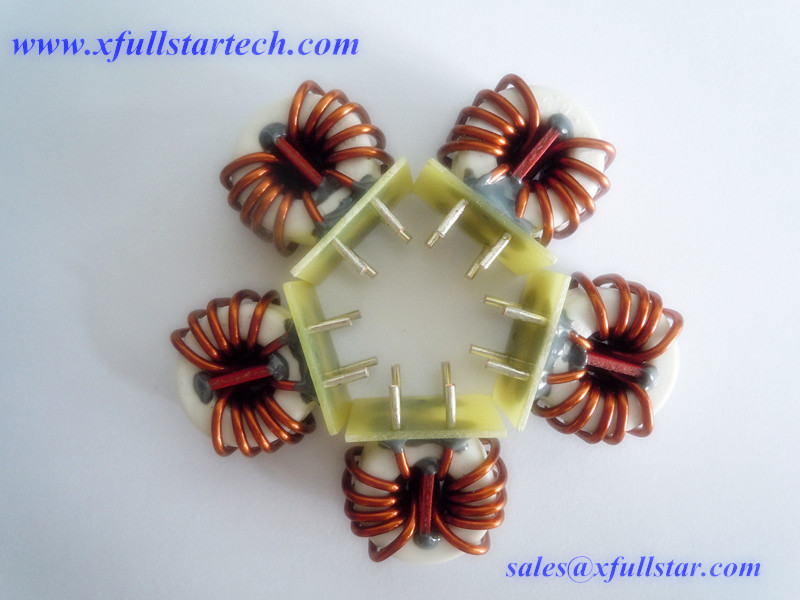

Sample show

For more detailed , please check common mode chokes

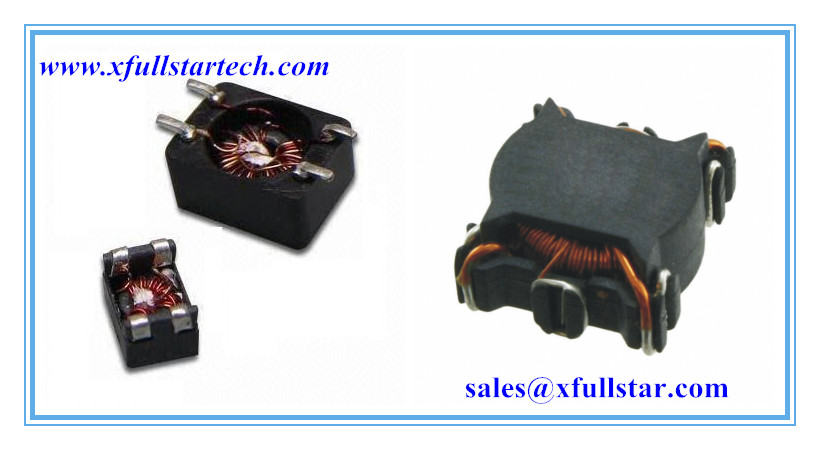

SMD common mode choke
