1 PORT RJ45 LAN 10/100 Base-T Magnetics Module (Equivalent To Wurth 7499011212A)
Aug 06, 2016
Leave a message
Basic Info
Type-1 port 10/100 base RJ45 connector with LED
Specification
Port numbers: 1 port
Band : 10/100 Base-T Magnetics Module
Type : RJ45 module
LED Color: Green and Yellow
LED Wavelength: Green 560-580nm / Yellow 580-610nm
Isolation voltage: 1500V/AC (Input to output)
OCL: 350uH Minimum @100KHz 100mV 8mA DC
Insertion loss : -1.2dB Maximum @100KHz-100MHz
Return Loss: -18dB Minimum @1MHz-30MHz
-14dB Minimum @30MHz-60MHz
-12dB Minimum @60MHz-80MHz
Common Mode Rejection: -30dB Minimum @1MHz-100MHz
Cross Talk:-30dB Minimum @1MHz-100MHz
Operating Temperature: -40℃ to +85℃
Storage Temperature: -40℃ to +85℃
Tolerance comply with F.C.C dimension requirements
Durability: 800 mating Min
Standards: Meets or Exceeds IEEE802.3af standards including 350uH Min OCL @100KHz 100mV 8mA DC
Material details :
Housing : Thermo plastic UL94 V-0
Contact/Shield: Cooper alloy
Shield Plating : Nickel
Contact Plating: Selective gold 6u"/15"/30"/50" Min

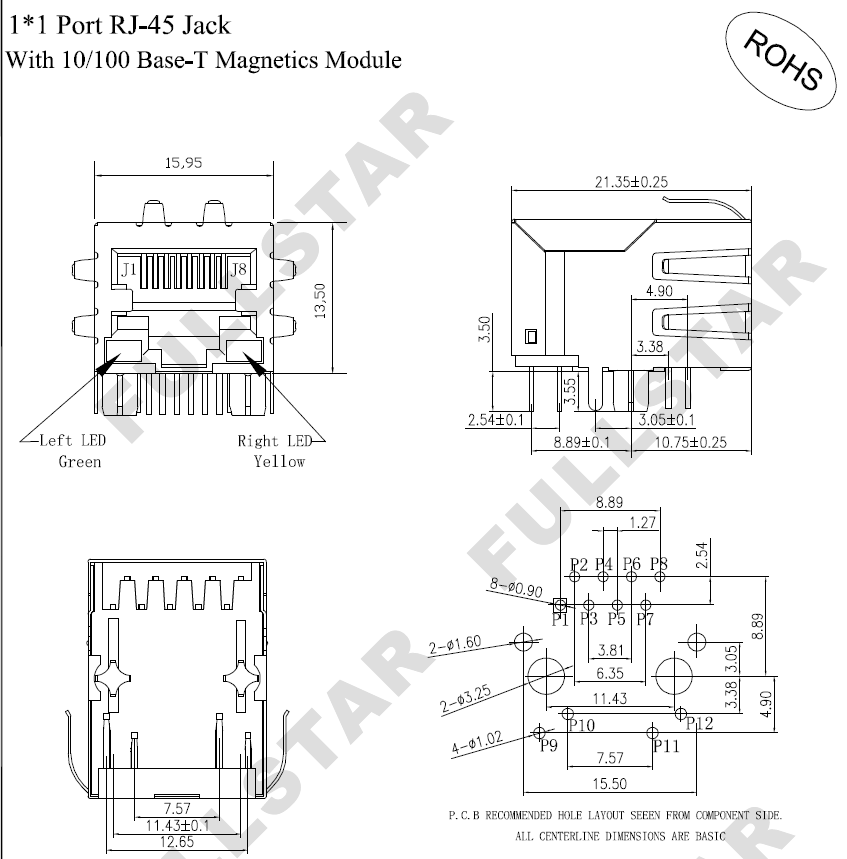

Below shows Dimension, electrical parameter and also Scheme
Product show

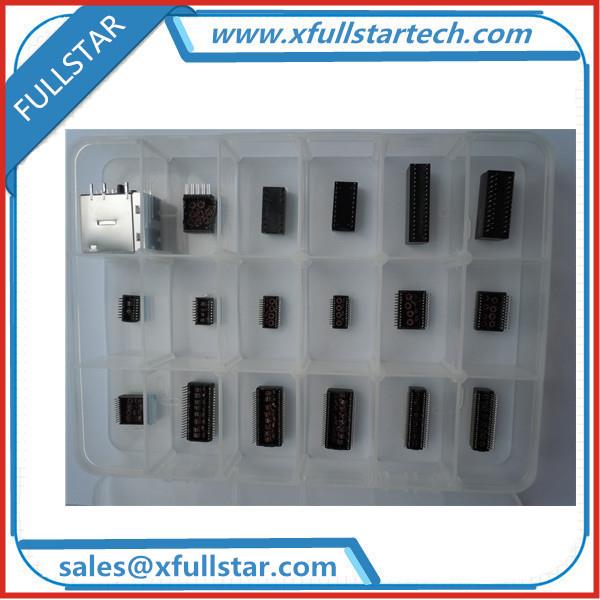

We also supply LAN TRANSFORMER
