Toroidal Inductor Choke Coil – OEM & ODM Custom Design

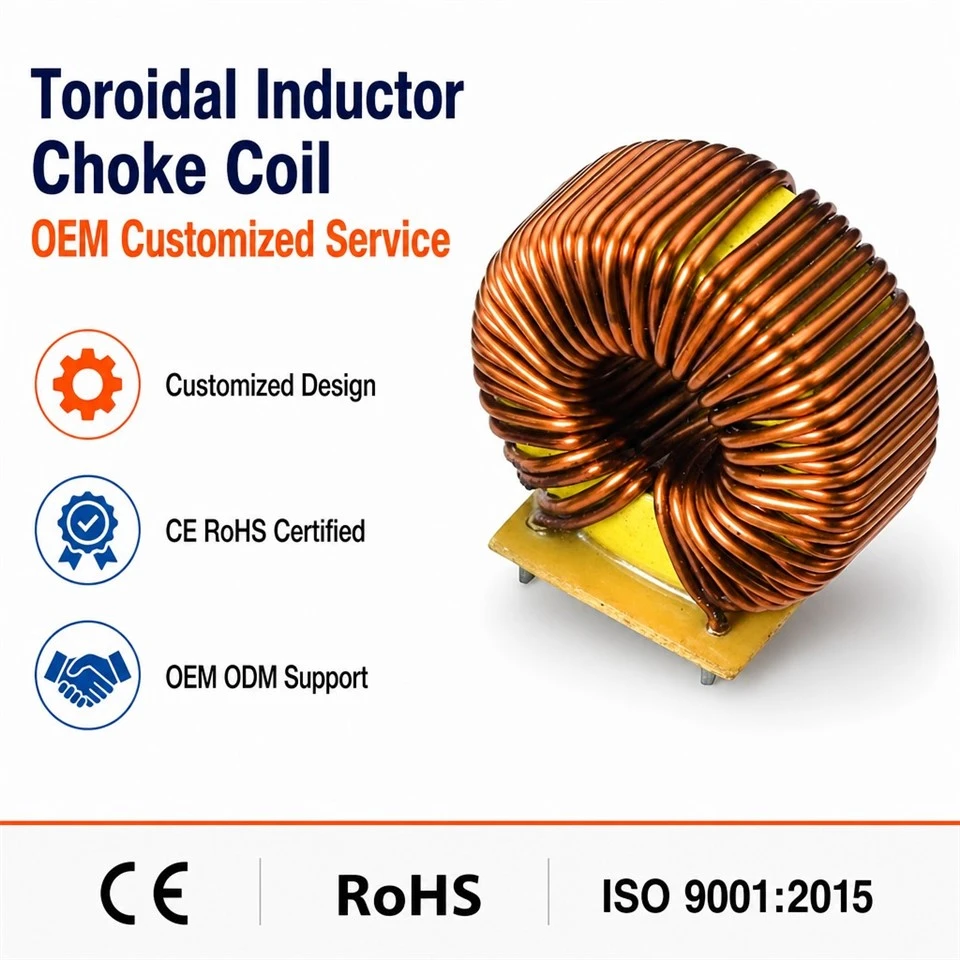

Product Overview

A Toroidal Inductor Choke Coil is a magnetic component featuring a toroidal core with conductive wire wound around its circumference. Depending on its core material, winding configuration, and electrical specifications, it can be designed for energy storage, current filtering, ripple reduction, or electromagnetic interference (EMI) suppression in electronic circuits.

The toroidal structure provides a compact magnetic design with a relatively closed magnetic path. Compared with some open-core designs, a properly designed toroidal inductor can help reduce external magnetic field leakage. Actual performance depends on the core material, winding arrangement, operating frequency, current, and component construction.

Our toroidal inductor choke coils can be customized to meet different application and manufacturing requirements. OEM and ODM support can be considered for projects requiring specific electrical characteristics, mechanical dimensions, winding configurations, or PCB mounting arrangements.

Whether you are developing a power supply, industrial electronic equipment, or an EMI filtering circuit, selecting the appropriate toroidal inductor starts with understanding your operating conditions and electrical requirements.

Key Features of Toroidal Inductor Choke Coils

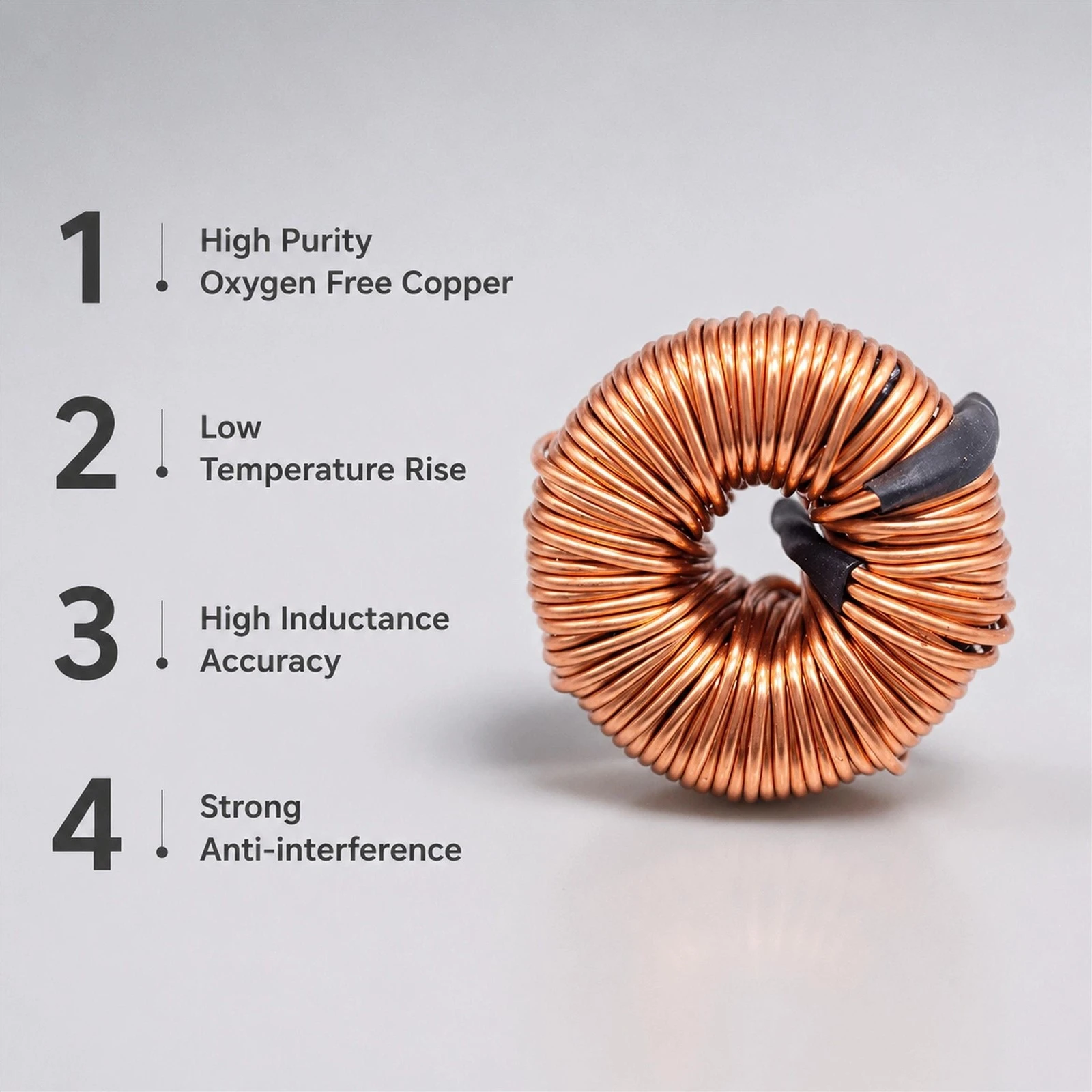

1. Toroidal Core Design

The ring-shaped magnetic core provides a continuous magnetic path for the winding. This structure is widely used in inductors and chokes designed for various power and filtering applications.

2. Customizable Electrical Characteristics

Electrical specifications can be defined according to the intended application. Depending on the design, key parameters may include inductance, rated current, winding resistance, operating frequency, and temperature rise.

Final specifications should be confirmed through product design, datasheet review, and testing.

3. OEM and ODM Customization

OEM and ODM services can support customers with application-specific magnetic components. Customization options may include core dimensions, wire selection, winding turns, terminal configuration, mounting structure, and other mechanical or electrical requirements, subject to design feasibility.

4. Compact Magnetic Structure

The toroidal core can provide an efficient magnetic path within a compact form factor. The overall size and performance depend on the selected core material, core dimensions, winding design, and electrical operating conditions.

5. Integration into Electronic Systems

Depending on the electrical design, toroidal inductors may be integrated into power conversion circuits, current filtering networks, and other applications requiring inductance or magnetic noise suppression.

Applications of Toroidal Inductor Choke Coils

Switching Power Supplies

Toroidal inductors may be used in switching power supply circuits for energy storage, current smoothing, or filtering, depending on their electrical design and position in the circuit.

EMI Filtering

When specifically designed as a choke, a toroidal magnetic component can help reduce certain types of electromagnetic interference. The winding configuration and impedance characteristics determine whether it is suitable for common-mode or differential-mode noise suppression.

Industrial Electronics

Industrial control systems, power equipment, and electronic assemblies may use toroidal inductors where the required inductance, current handling, and mechanical configuration match the application.

Power Conversion Equipment

Inverters, converters, and other power electronic systems may incorporate toroidal inductors for energy storage or filtering. The appropriate component must be selected according to the circuit topology, current waveform, switching frequency, and thermal requirements.

Customized Electronic Equipment

For applications with non-standard dimensions or electrical requirements, a custom toroidal inductor may offer a suitable solution when an off-the-shelf component does not meet the design specifications.

OEM & ODM Toroidal Inductor Customization

Different electronic applications require different magnetic component characteristics. A custom design should begin with a clear understanding of the electrical operating conditions and installation requirements.

Depending on manufacturing capabilities and design feasibility, customization may cover:

Core dimensions: Inner diameter, outer diameter, and core height.

Core material: Selected according to inductance, frequency, current, losses, and temperature requirements.

Winding configuration: Wire type, wire diameter, winding turns, and winding arrangement.

Electrical specifications: Target inductance, rated current, winding resistance, and other agreed parameters.

Mechanical design: Lead spacing, terminal arrangement, mounting method, and overall dimensions.

Application requirements: Operating temperature, vibration conditions, insulation requirements, and other relevant environmental factors.

To evaluate a custom project, customers can provide an existing datasheet, technical drawing, reference sample, or application requirements. The final design should be confirmed through engineering review and appropriate testing.

How to Select the Right Toroidal Inductor

Choosing a suitable toroidal inductor requires evaluating the electrical, magnetic, thermal, and mechanical requirements of the target circuit.

Inductance

Inductance affects the component's behavior in the circuit. The required value should be determined from the circuit design and verified under the specified measurement conditions.

Rated Current and Saturation Current

Rated current relates to the component's operating and thermal limits, while saturation current describes the current level at which inductance decreases significantly due to core saturation. These values are not interchangeable and should be checked separately when relevant.

Core Material

Different core materials have different magnetic properties, frequency characteristics, and loss behavior. Core selection should match the operating frequency, current waveform, temperature range, and intended function.

DC Resistance

Winding resistance contributes to conduction losses and temperature rise. A suitable design should balance electrical performance, wire dimensions, available space, and thermal requirements.

Operating Frequency

Inductor performance can change with frequency because of core losses, winding losses, parasitic capacitance, and other effects. Check the component's specified operating conditions rather than relying on inductance alone.

Dimensions and Mounting

Verify the core dimensions, overall component size, terminal arrangement, and mounting method against the available PCB space and assembly requirements.

EMI Performance

For noise suppression applications, evaluate the impedance characteristics and confirm whether the component is designed for common-mode or differential-mode filtering. Validate the result in the actual circuit when EMI compliance is important.

Quality and Compliance Considerations

Electrical and mechanical performance should be verified against the agreed product specifications. Relevant inspection and testing may include inductance measurement, winding resistance measurement, dimensional inspection, and other tests appropriate to the component design.

Where applicable, customers should confirm the availability and scope of relevant quality management certifications, material compliance documentation, and product-specific test reports before purchase.

CE, RoHS, and ISO 9001:2015 refer to different types of compliance or quality-related requirements. They should not be treated as interchangeable product performance guarantees. Applicable declarations, certificates, and supporting documentation should be verified for the actual manufacturer and product.

We a premier professional manufacturer specializing in magnetic components and electronic solutions. Founded in 2009 and headquartered in the high-tech hub of Xi'an, we have accumulated over 15 years of deep expertise in the research, development, and production of high-performance transformers and inductors. Our facility spans 3,000 square meters and is powered by a dedicated workforce of 300+ skilled professionals, including a senior R&D team focused on bespoke magnetic designs.

Our comprehensive product line features high-frequency and low-frequency transformers, toroidal transformers, current transformers, and a wide variety of inductors and magnetic cores. As a Top 6 leading factory for Industrial Controls, we provide critical components for power supplies, telecommunications, automotive electronics, and green energy sectors globally.

Quality is our core competency. Fullstar operates under a strict ISO9001:2015 Quality Management System. Our products carry international safety and environmental certifications including UL, CE, RoHS, and REACH. Every unit undergoes a 100% rigorous testing process before shipment to ensure zero-defect reliability in demanding industrial environments.

We excel in customization. With advanced design-based and sample-based capabilities, we offer rapid 7-day prototyping and flexible OEM/ODM services. Our supply chain reaches over 80 countries, providing localized support and cost-effective logistics. Whether you require high-volume production or small-batch custom coils, Fullstar delivers precision-engineered magnetic components that drive your innovation forward. We welcome global business inquiries for long-term strategic partnerships.

What is a toroidal inductor choke coil?

It is a magnetic component made by winding conductive wire around a ring-shaped core. Depending on its design, it can be used for energy storage,

current filtering, or noise suppression.

What are the advantages of a toroidal inductor?

A toroidal core provides a relatively closed magnetic path and can help reduce external magnetic field leakage. Its performance, size, efficiency, and suitability depend on the core material, winding design, and operating conditions.

Is a toroidal inductor the same as a common mode choke?

Not necessarily. A toroidal inductor describes a component by its core shape, while a common mode choke is defined by its electrical function and winding arrangement. A toroidal component can be designed as a common mode choke, but not every toroidal inductor is a common mode choke.

Can toroidal inductors be customized?

Yes, custom designs may be possible depending on manufacturing capabilities and technical requirements. Typical design considerations include core dimensions, core material, wire specifications, winding turns, inductance, current rating, and mounting configuration.

What information is needed for a custom quotation?

Useful information includes the required inductance, operating current, operating frequency, dimensions, core material if specified, mounting requirements, operating temperature, target application, and expected order quantity. A datasheet, drawing, or reference sample can also help clarify requirements.

How do I choose a toroidal inductor for EMI suppression?

First identify the type of noise, its frequency range, and the relevant current path. Then review the component's impedance characteristics, current rating, winding configuration, and parasitic effects. The final selection should be validated through circuit testing and appropriate EMI measurements.

Request a Custom Toroidal Inductor Solution

Looking for a toroidal inductor choke coil for a specific electronic application?

Share your electrical specifications, mechanical drawing, reference sample, or project requirements for an engineering review. OEM and ODM options can be evaluated according to the required performance, manufacturing feasibility, and application conditions.
