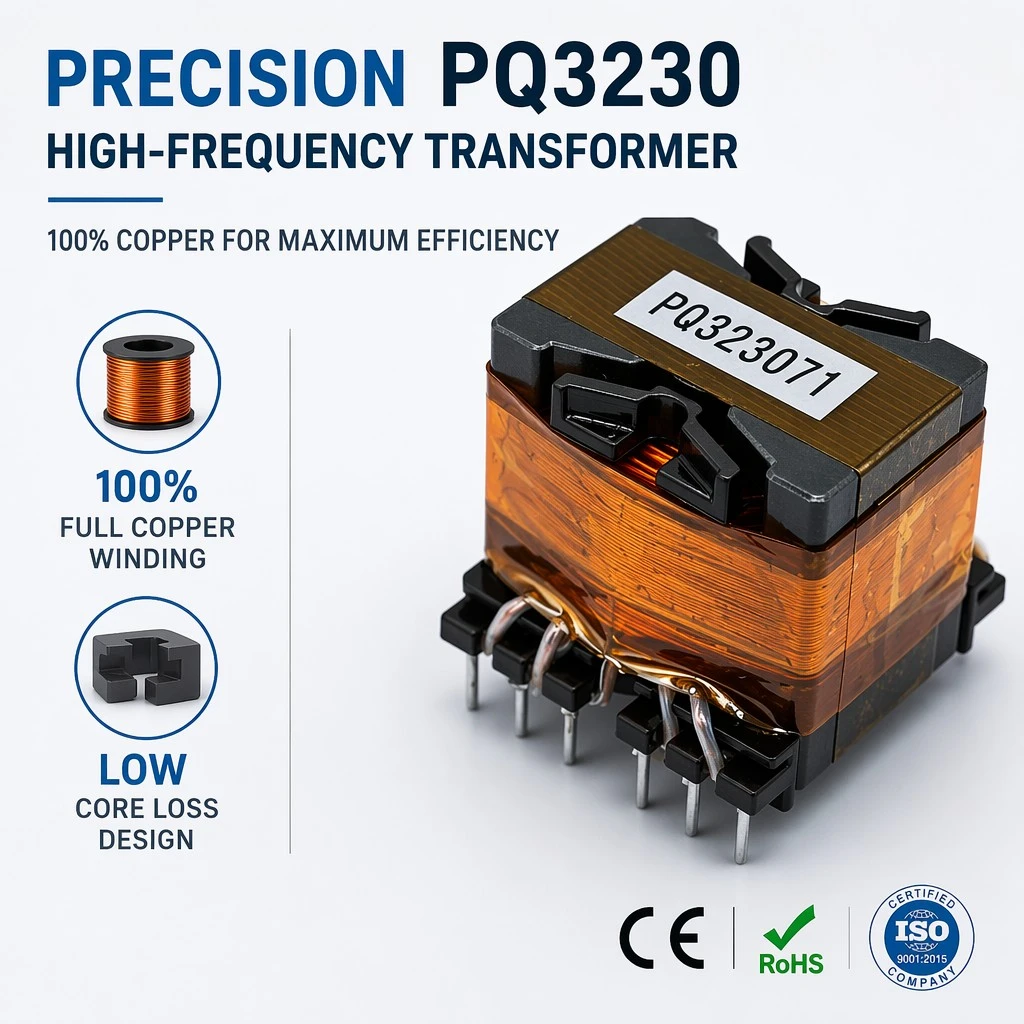

PQ3230 High Frequency Transformer

With superior thermal performance and reliable insulation characteristics, the PQ3230 transformer is widely used in switching power supplies, inverter systems, LED drivers, and industrial power electronics.

Key Features

✅ 100% Copper Winding Design

High-purity copper wire winding ensures:

Lower winding resistance

Reduced energy loss

Improved current carrying capability

Higher conversion efficiency

Better thermal performance

✅ Low Core Loss Ferrite Structure

The PQ3230 ferrite core design provides:

Excellent high-frequency characteristics

Reduced magnetic loss

Stable performance during continuous operation

Improved power density

PQ3230 core structures are commonly designed for switching transformer applications with ferrite materials optimized for high-frequency operation.

✅ High Efficiency Power Conversion

Optimized winding layout and magnetic coupling help achieve:

Efficient voltage conversion

Reduced electromagnetic interference (EMI)

Reliable long-term operation

✅ Compact & Reliable Construction

Space-saving PQ package design

Strong mechanical stability

Suitable for automated PCB assembly

Available for customized electrical parameters

Technical Advantages

Applications

1. Switching Power Supply (SMPS)

The PQ3230 transformer is widely used in AC/DC and DC/DC switching power supplies, providing efficient isolation and voltage conversion.

Typical applications:

Industrial power supplies

Adapter power supplies

Embedded power modules

Control system power units

2. Inverter Systems

Suitable for inverter power conversion applications requiring stable high-frequency energy transfer.

Applications include:

Solar inverter systems

Energy storage equipment

DC-AC conversion systems

Backup power supplies

3. LED Driver Power Supply

The transformer can be used in high-efficiency LED power solutions:

LED lighting drivers

Constant-current power supplies

Commercial lighting systems

Industrial lighting equipment

4. Industrial Electronics

Ideal for various electronic power conversion equipment:

Automation control systems

Instrumentation equipment

Communication power modules

Motor control systems

5. Energy Storage & New Energy Equipment

Designed for high-frequency power conversion requirements in:

Battery charging systems

Energy storage converters

Renewable energy equipment

Why Choose Our PQ3230 Transformer?

✔ High-quality copper winding for improved efficiency
✔ Low-loss ferrite core for high-frequency operation
✔ Stable electrical performance
✔ Custom voltage ratio and winding design available
✔ Suitable for OEM/ODM power supply projects
✔ RoHS compliant manufacturing option available

Customization Options

We support customized transformer solutions according to customer requirements:

Turns ratio customization

Output voltage/current adjustment

Pin configuration customization

Core material selection

Insulation grade customization

Sample development and mass production

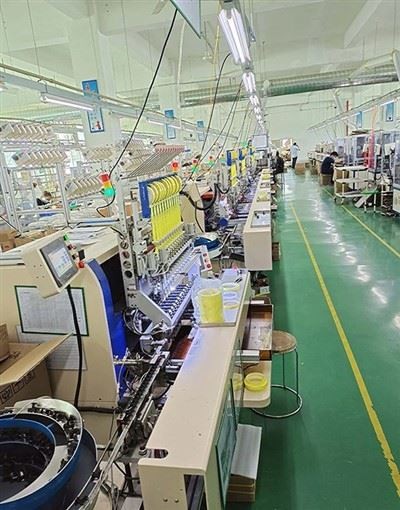

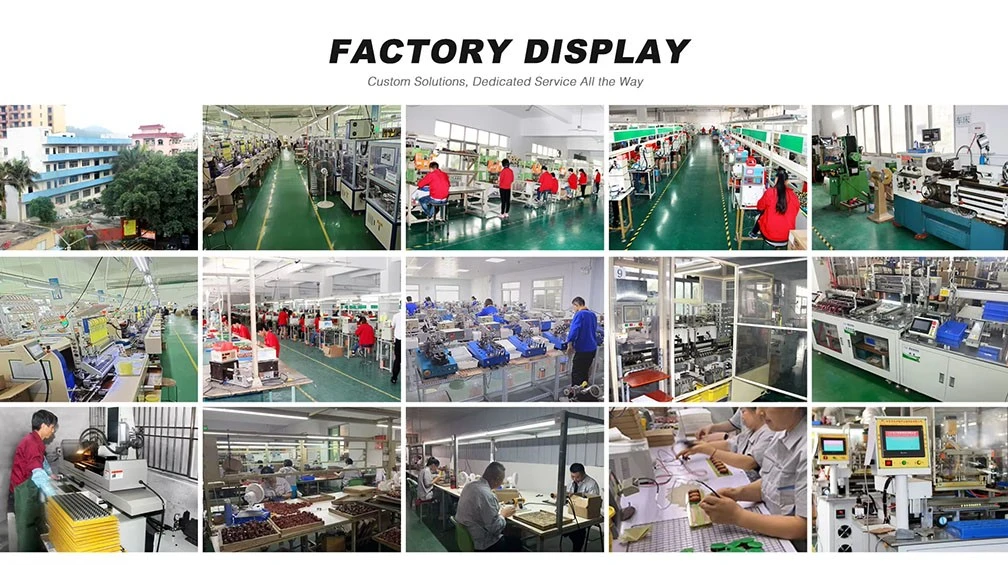

We a premier professional manufacturer specializing in magnetic components and electronic solutions. Founded in 2009 and headquartered in the high-tech hub of Xi'an, we have accumulated over 15 years of deep expertise in the research, development, and production of high-performance transformers and inductors. Our facility spans 3,000 square meters and is powered by a dedicated workforce of 300+ skilled professionals, including a senior R&D team focused on bespoke magnetic designs.

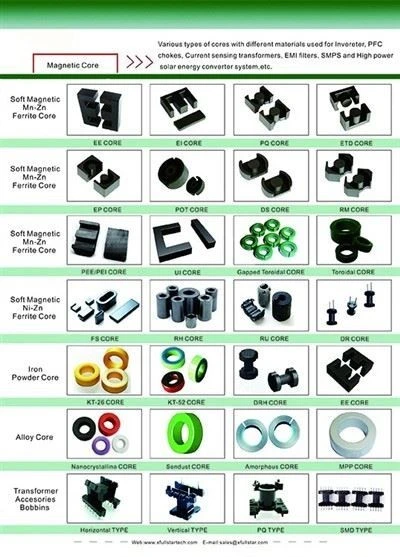

Our comprehensive product line features high-frequency and low-frequency transformers, toroidal transformers, current transformers, and a wide variety of inductors and magnetic cores. As a Top 6 leading factory for Industrial Controls, we provide critical components for power supplies, telecommunications, automotive electronics, and green energy sectors globally.

Quality is our core competency. Fullstar operates under a strict ISO9001:2015 Quality Management System. Our products carry international safety and environmental certifications including UL, CE, RoHS, and REACH. Every unit undergoes a 100% rigorous testing process before shipment to ensure zero-defect reliability in demanding industrial environments.

We excel in customization. With advanced design-based and sample-based capabilities, we offer rapid 7-day prototyping and flexible OEM/ODM services. Our supply chain reaches over 80 countries, providing localized support and cost-effective logistics. Whether you require high-volume production or small-batch custom coils, Fullstar delivers precision-engineered magnetic components that drive your innovation forward. We welcome global business inquiries for long-term strategic partnerships.

FAQ

What is the PQ3230 high-frequency transformer used for?

It is used as the switching transformer in AC/DC power supplies and DC/AC conversion stages - typical applications are industrial power supplies, medical and communication equipment, solar inverters, UPS systems and consumer audio-visual electronics.

Can the PQ3230 be customized?

Yes. Turns ratio, inductance, wire gauge, insulation, bobbin and pin layout are all defined per project. Custom designs are welcome; send a specification or drawing and the engineering team will quote against it.

What is the minimum order quantity and lead time?

Order terms depend on the build and order volume - contact us with your specification. Sample lead time is typically 1–2 weeks and mass production is typically 3–4 weeks.

Which certifications apply?

RoHS-compliant materials, CE marking on the finished product, and manufacturing under an ISO 9001:2015 certified quality system. REACH and UL-grade materials are available on request.
