EE16 Transformer

Providing with quality and standard customer-made electronic and passive components ee16 transformer and solution products, Fullstar Electronics is a leading ee16 transformer manufacturer and supplier in China. welcome to wholesale electronics ee16 transformer from our factory.

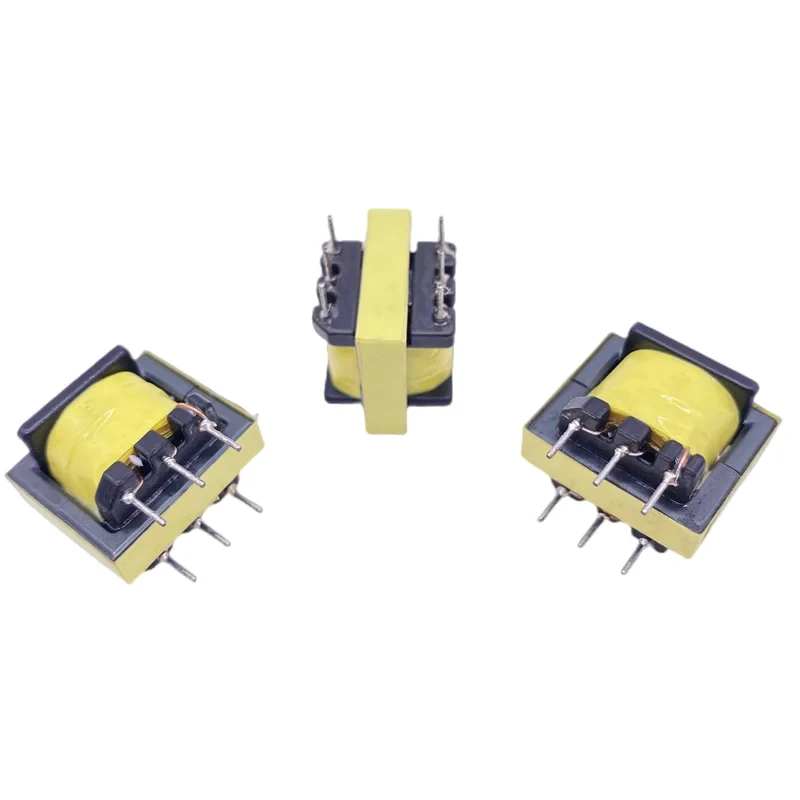

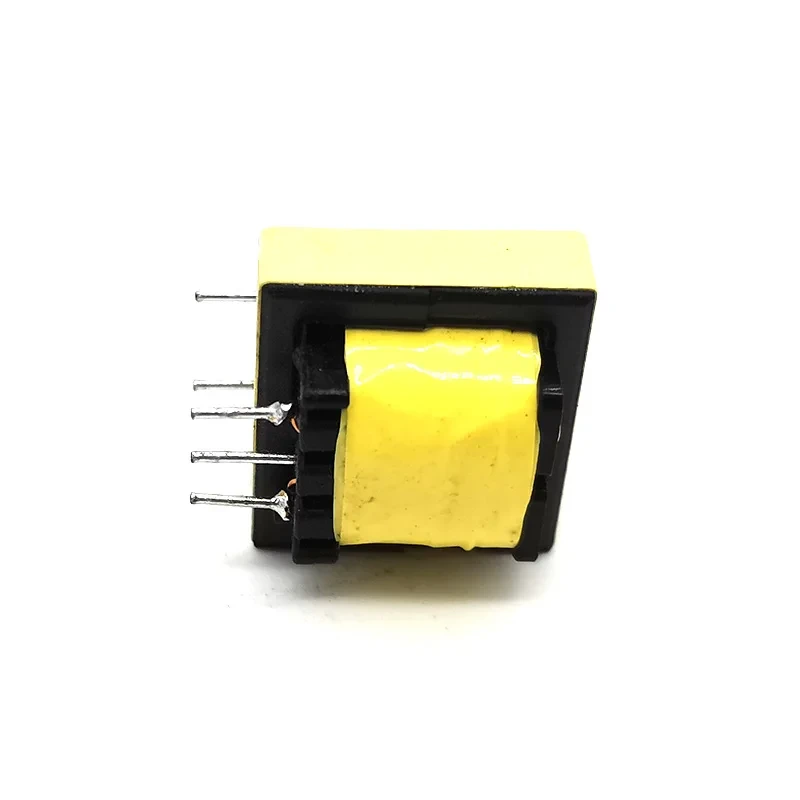

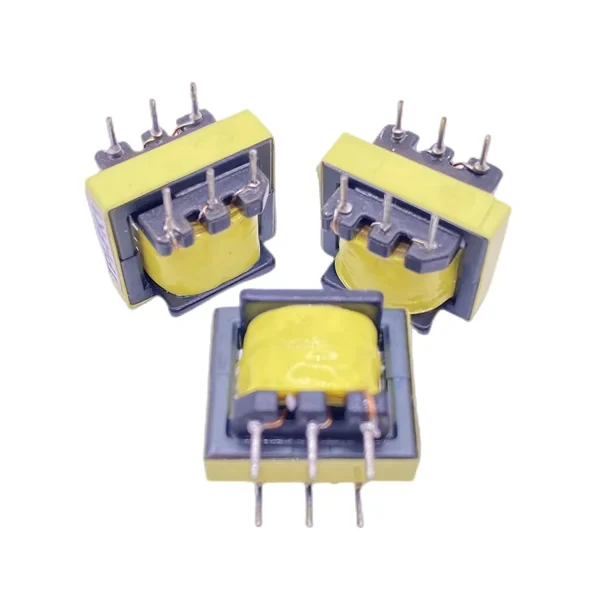

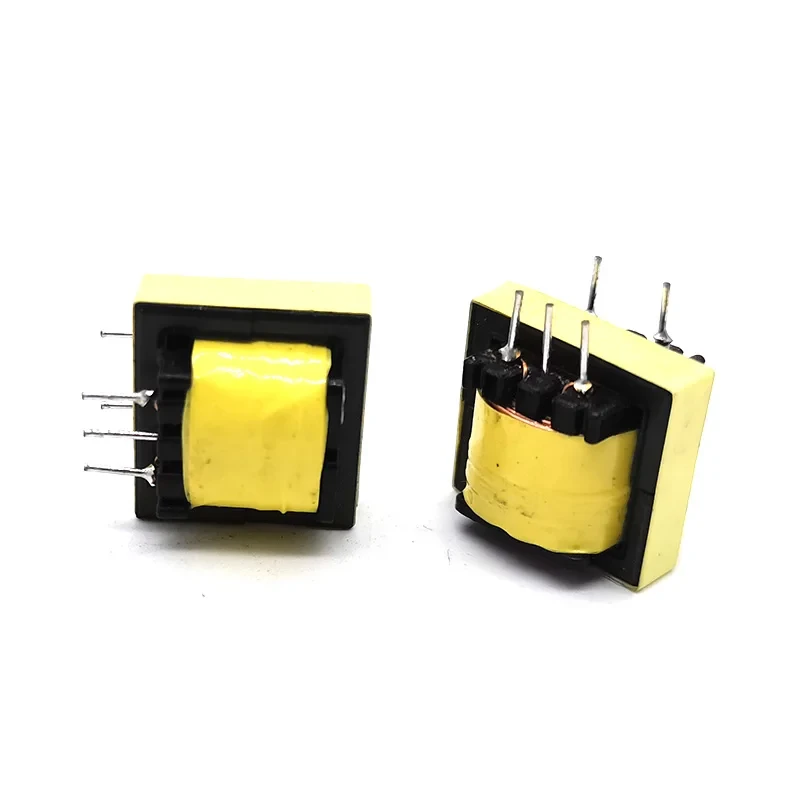

EE16 transformer is a compact, high-frequency ferrite-core electronic power component. It features an E-shaped core measuring 16 mm wide. Operating frequencies span from 10 kHz to 500 kHz. Standard power output scales between 1W and 12W. It is a foundational element in Switching Mode Power Supplies (SMPS).

Its core competitive advantages include the following key areas:

1. Compact Size & Spatial Flexibility

Minimal Footprint: The 16 mm core width occupies very little PCB real estate.

High Power Density: It reliably delivers 1W to 12W of output within a volume of just a few cubic centimetres.

Dual Mounting Options: Available in vertical and horizontal bobbins. The vertical type saves PCB surface area, while the horizontal type minimizes profile height.

2. Excellent Magnetic & Electrical Performance

Low High-Frequency Loss: Utilizing high-permeability ferrite materials (like PC40 or N87) ensures minimal core losses between

50 kHz and 200 kHz.

Optimized Energy Storage: When used in flyback topologies, a precise air gap can be ground into the center leg to prevent magnetic saturation.

Low Leakage Inductance: The E-core geometry provides an even magnetic path and a wide winding window, making it easier to minimize leakage inductance.

3. Highly Standardized & Cost-Effective Supply Chain

Low Production Cost: As one of the most mature industry standards, its cores, bobbins, and clips are mass-produced globally.

Automated Winding Friendly: The bobbin structure allows for high-speed automated winding machinery, reducing manufacturing time and labor costs.

High Interchangeability: Standardized specifications from top manufacturers ensure stable sourcing and alternative components.

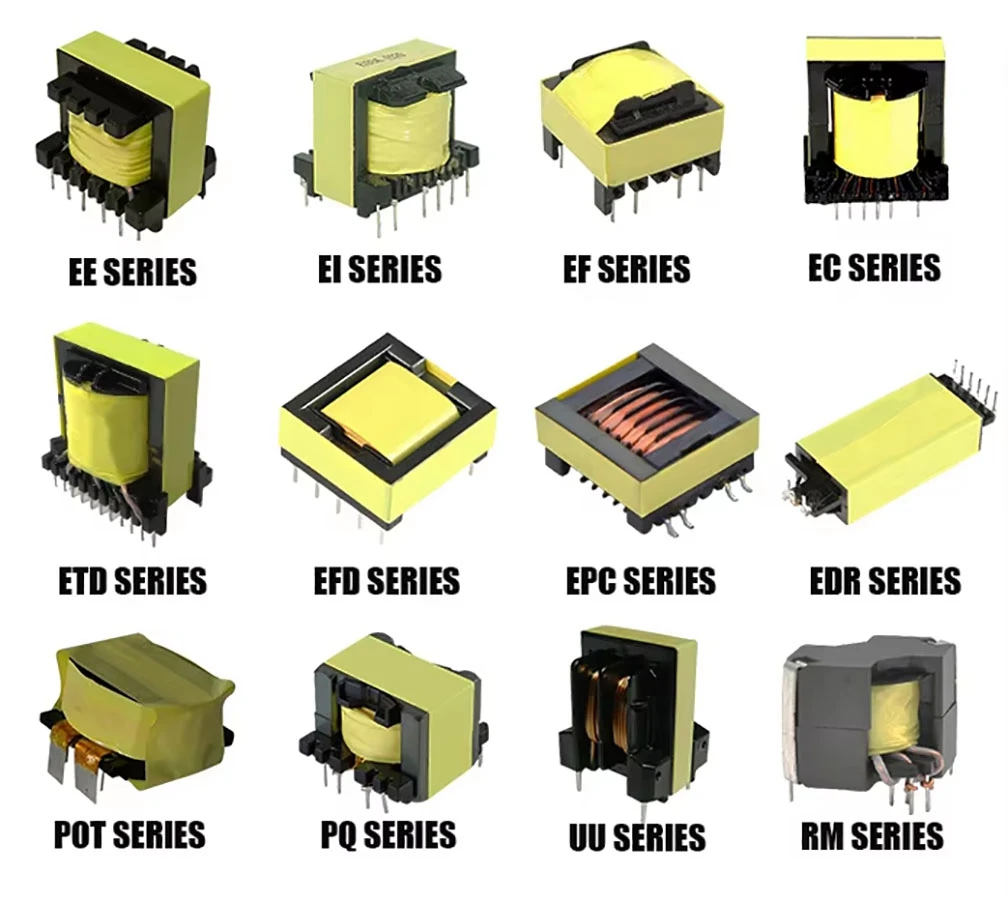

We have other types ：
