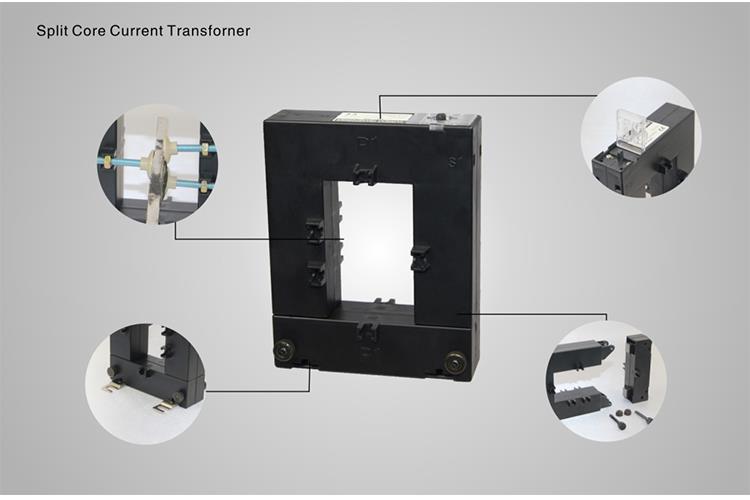

Split-core Current Sensor introduction
Fullstar SCT series of split core current transformer have advantages of small size, high accuracy, strong load capacity, easy installation. The output of all our split core CTScan be current or voltage according to your specific requirements.Providing with quality and standard customer-made electronic and passive components split-core current sensor and solution products, Fullstar Electronics is a leading split-core current sensor manufacturer and supplier in China. welcome to wholesale electronics split-core current sensing transformer, clamp on current transformers, hall current sensors, hall-effect transducers from our factory.
Our related products
Our factory
SHAANXI FULLSTAR ELECTRONICS CO.,LTD is specialized in electronics and magnetic components .
The main products are: electrical transformer, inductor, current sensor, magnetic core, etc.,Our factory has 30 years' experience in electronics field and the annual volume is above 200,000,000 pieces. We are ISO9001:2015 certified company.
Features :
Split –core current sensing transformer,
●ABS anti-combustion plastic casing
●Test current range : 0.01A to 10000A
●input/output current: 100A/33.3mA, 200A/100mA, 100A/1A, 200A/1A,200A/5A, 500A/5A, 600A/5A 800A/5A,1000A/5A,2000A/5A,3000A/5A 4000A/5A 8000/5A 10000A/5Aavailable
●Encapsulated with epoxy resin to ensure strong insulation ability
●High-precision current transformers
●Locking snap current transformers
●PBT burn-resistance current transformers
●High-precision current transformers
●Reliable linear performance transformers
●Strong anti-magnetic disturbance epoxy current transformers-Completely-enclosed, good mechanical behavior, suitable for various environments, strong voltage isolation ability, delicate appearance
●Suitable for single-phase electricity meter as well as anti-tampering electricity meter;
●There are standard holes on the primary lead wire which can be directly fixed on the meter terminals with standard bolts
●Customized type available
|
Part number |
Hole diameter |
Rated current |
Rated output |
Accuracy |
Resistance |
Work frequency |
|
SCT010T |
10 mm |
80A |
26.6 mA |
0.5/1 |
10 Ω |
50-1KHz |
|
SCT016T |
16 mm |
120A |
40 mA |
0.5/1 |
10 Ω |
50-60 Hz |
|
SCT016TS |
16 mm |
150A |
50mA |
0.5/1 |
10 Ω |
50-60 Hz |
|
SCT024TS |
24mm |
400A |
100mA |
0.5/1 |
8Ω |
50-60 Hz |
|
SCT036TS |
36mm |
600A |
100mA |
0.5/1 |
5Ω |
50-60 Hz |
Application :
widely used in the relay protection area – Current measurement
Electrical load monitoring / Energy and sub-metering products / Network equipment/ Instruments and sensors/ Control systems/
FSCT10(High-precision split core current sensor, 0-120A, 50Hz to 100KHz, Available in Various Specifications )
FSCT24 SERIES(High-precision split core current sensor, 0-120A, 50Hz to 100KHz, Available in Various Specifications )
