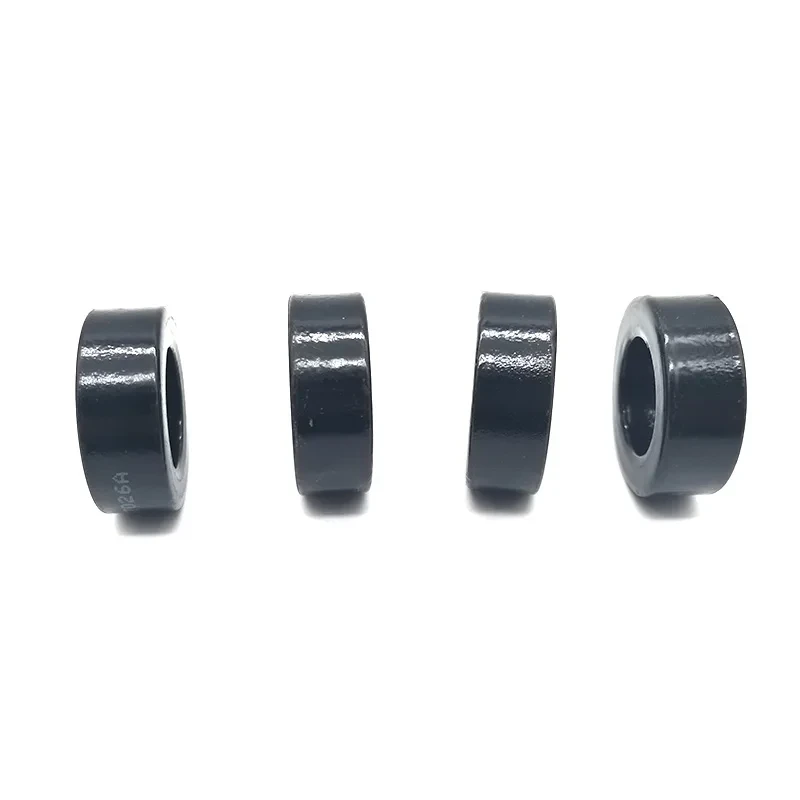

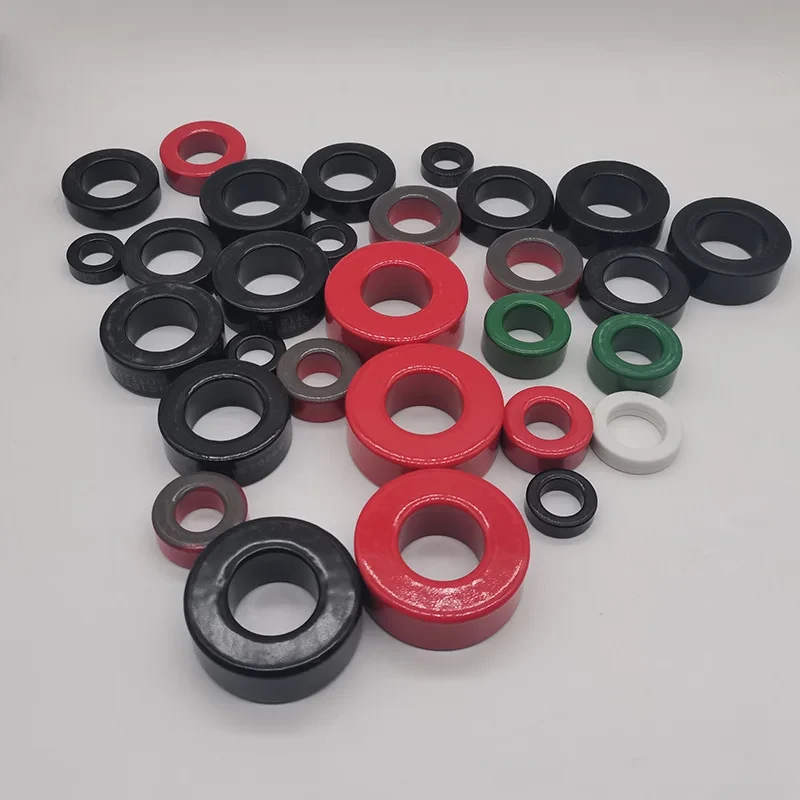

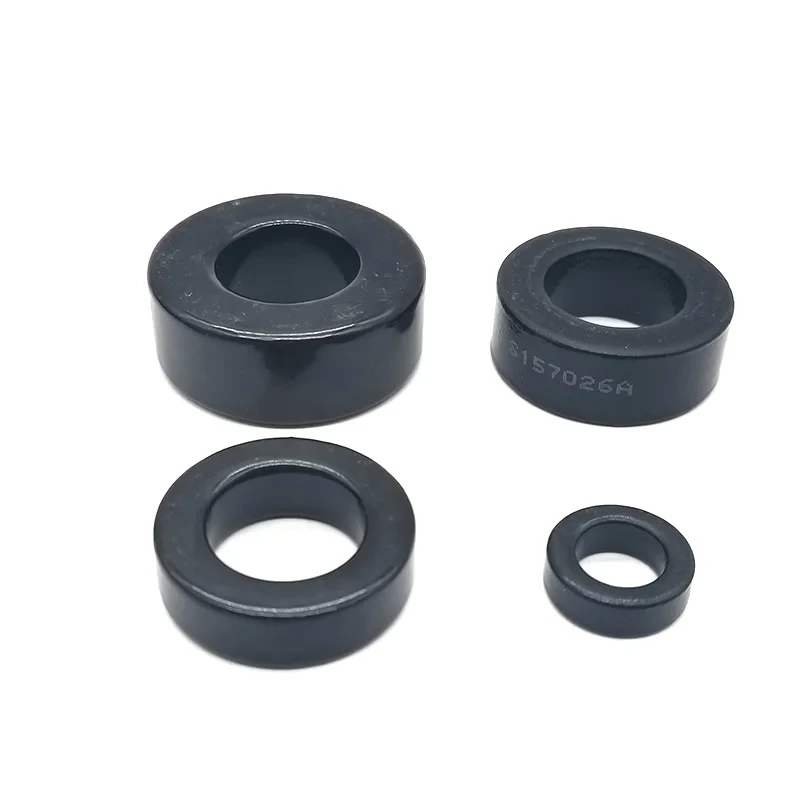

Toroidal Silicon Core

Providing with quality and standard customer-made electronic and passive components toroidal silicon core and solution products, Fullstar Electronics is a leading toroidal silicon core manufacturer and supplier in China. welcome to wholesale electronics toroidal silicon core from our factory.

Toroidal Silicon Core (often referred to as a Toroidal Silicon Steel Core) is a highly efficient magnetic component widely used in power electronics and electrical engineering. Below is a detailed introduction to this core, followed by a comprehensive comparison with other major types of magnetic cores.

1. Introduction to Toroidal Silicon Core

• Structure & Material: It is a continuous, seamless ring-shaped (toroidal) core manufactured by tightly winding high-quality cold-rolled silicon steel strips (typically under 0.35mm thick).
• Core Advantages:
• High Efficiency & Low Loss: The continuous magnetic path aligns perfectly with the magnetic flux lines, eliminating the air gaps found in traditional laminated cores. This reduces excitation energy and core loss by approximately 25%, achieving electrical conversion efficiencies of over 95%.
• Low Leakage Flux & EMI: The closed-loop structure confines the magnetic field almost entirely within the core, resulting in extremely low external electromagnetic interference and radiation.
• Low Noise: The absence of air gaps and the use of vacuum impregnation technology make the core structurally rigid, significantly reducing vibration and audible hum.
• Compact Size: For a given power capacity, its volume and weight can be reduced by about 50% compared to traditional E-I cores.
• Typical Applications: High-fidelity audio equipment, power amplifiers, medical devices, solar inverters, and general power transformers.

2. Comparison of Magnetic Cores

Magnetic cores are generally evaluated based on their materials and structural shapes. Below is a comparison of Toroidal Silicon Cores against other mainstream options.

A. Material Comparison: Toroidal Silicon vs. Others

B. Structural Comparison: Toroidal vs. Others

Summary for Selection

• For Low-Frequency Power & Audio: Choose Toroidal Silicon Cores for their high efficiency, low noise, and compact size.
• For High-Frequency & Cost Sensitivity: Choose Ferrite materials in E-Type or PQ structures for easy manufacturing and good heat dissipation.
• For High DC Current & Energy Storage: Choose Iron Powder materials, as they resist saturation well.
• For Ultimate Efficiency & High-End Applications: Choose Nanocrystalline/Amorphous materials, despite their higher cost.
