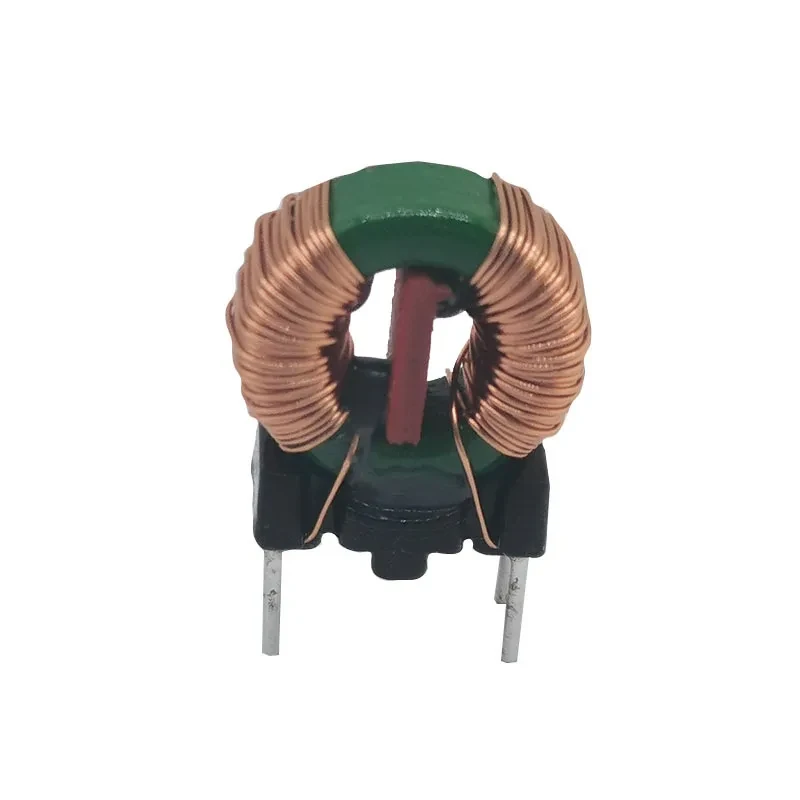

"Inductor 10A choke" generally refers to a choke inductor with a rated current of 10A. It is a passive electronic component that operates on the principle of electromagnetic induction and is primarily used in power supply and filtering circuits.

1. Core Parameter Breakdown

Choke: "Choke" is a specific application term for an inductor, short for "Choke Inductor." Its core function is to "block high frequencies and pass low frequencies." This means it presents high impedance (inductive reactance) to alternating current (AC) or high-frequency signals, while offering minimal resistance to direct current (DC) or low-frequency signals.

10A (Rated Current): This indicates the maximum safe direct current the inductor can handle is 10 Amperes. In practical selection, 10A typically corresponds to either the temperature rise current (the current that causes the inductor's surface temperature to rise within a specified range) or the saturation current (the current at which the inductance drops to a specified value).

2. Main Functions and Application Scenarios

Filtering and Decoupling: Used as a filter choke to eliminate high-frequency noise and interference on power or signal lines, thereby stabilizing the current.

Ripple Suppression: In power circuits like DC-DC converters, it acts as a choke to suppress current ripple and maintain a steady output current.

Energy Storage: In switching power supplies, it temporarily stores energy in the form of a magnetic field to complete the voltage conversion over the entire switching cycle.

3. Typical Specification Examples

Taking commonly available 10A choke inductors as an example, typical specifications may include:

Inductance: e.g., 10µH (microhenries)

Tolerance: ±10%

Maximum DC Resistance (DCR): e.g., 12 mΩ Max (Lower DCR means lower conduction loss and higher power supply efficiency)

Core Material: Ferrite or Alloy Powder

Package Type: Radial Leaded or Surface Mount Device (SMD)

4. Selection Considerations

When selecting a 10A choke, in addition to the current rating, the following factors must be comprehensively evaluated:

Saturation Current (Isat) vs. Temperature Rise Current (Irms): Ensure that the peak current in the circuit is lower than the inductor's saturation current, and the Root Mean Square (RMS) current does not exceed the temperature rise current. A safety margin of at least 20% is usually recommended.

DC Resistance (DCR): DCR directly causes heat generation (copper loss). In high-current applications (like 10A), it is advisable to choose inductors with lower DCR to improve system efficiency.

Shielding Performance: High-current inductors may generate significant magnetic leakage during operation. If there are sensitive components nearby (such as CPUs), fully shielded structures (e.g., molded inductors) should be selected to reduce Electromagnetic Interference (EMI).

Mounting and Dimensions: Choose the appropriate package size and mounting method (through-hole or surface-mount) based on the PCB's space constraints.

we are specialized in electronics and magnetic components .The main products are Air core choke,Trough-hole Drum Core Inductor,Through-hole Power Inductor,Rod Core Choke,Through-hole Common Mode Choke.
