Inductor

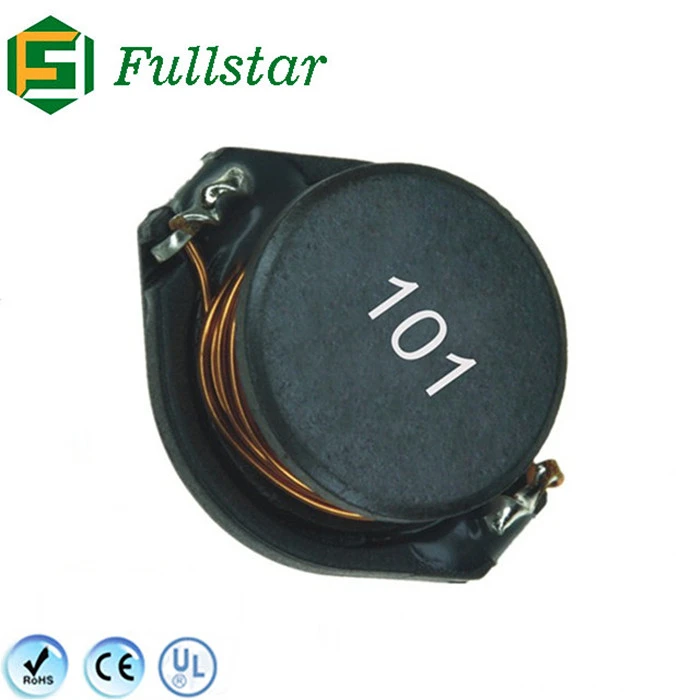

SMD Power Inductor

1.RoHS compliant.
2.Halogen free.
3.Suitable for large current.
4.High reliability for automotive uses.
5.Package : Tape & reel.

Chat Now
Product Details


SMD POWER INDUCTOR


Inductance test frequency: 100kHz/0.1V

RoHS compliant

Halogen free

Suitable for large current.

High reliability for automotive uses

Electrical properties:

Isat base on L/LOA: 35% maximum

Irms base on temperature rise: 40 degree Celsius maximum



               SMD power inductor5.jpg       SMD power inductor3.png

Features :

Silver surface plated power chip inductor



High-current chip inductor




Low-resistance chip inductor




Small profile chip inductor




SMD power choke coil




SMD power inductor




SMD common mode choke




Low profile suitable for high current



Inductance range: 10.0uH to 2,200.0uH ±20%



SMD taping and reel package suitable for automatic SMD equipment assembly

Materials:





Core: ferrite DR/RI core




Wire: enameled copper wire



Base: LCP E4008




Terminal: tinned copper flat



Adhesive: epoxy resin




Storage temperature: -40 to +125-degree Celsius



Operating temperature: -25 to +105-degree Celsius



Rated current: base on temperature rise delta L/L0A= 10% maximum

Temperature rise: 40-degree Celsius max



Resistance to solder heat: 260-degree Celsius, 10 seconds

Package :  Tape and Reel

Fullstar Type Series :

PHS series , PHF Series, PIS Series, PRS Series


SMD power inductor.jpg

Application :

 DC/DC converters for Portable equipments (MP3 Mpeg4).AV equipments (DVCs .LCD TV .Digital cameras)  Mobile Computer (PDAs , Notebook) ,Small size communication,Equipments (Mobile phone) etc…

VTR , OA Equipment ,   Camcorder , TV Game ,  LCD Television Set



Package:



inductor package.png







Our Certificates:

All products meet RoHS Standard and won ISO9001 quality certificate.


Our Service:

Good quality + Good price + Good service = Customer's trust


Why choose us?

1.100% testing in each testing process High quality and best services.

2.Good quality, reasonable price, high output, Quick delivery and  satisfying service are guaranteed.

3.Delivery time:7-15 days, or as per customer's quantity.

4.Professional manufacturer.

5.Package: As per customer's requirements.

6.We sincerely hope to establish longtime and friendly business relationship with you!
